27. HPM EtherCAT to CAN Gateway

27.1. Depend on SDK1.10.0

27.2. Overview

This example program utilizes the EtherCAT and CAN communication functions of the HPM6E series chips, and implements the EtherCAT-to-CAN communication function based on the ETG 5001.5000 EtherCAT-to-CAN protocol.

Features：

Based on the ETG 5001.5000 EtherCAT-to-CAN protocol; refer to the 5000 protocol in ETG5001_3_V0i1i2_S_D_MDP_Gateways for detailed protocol content.
Supports CAN parameter configuration.
Supports two transmission modes: Trigger mode and Cycle mode.
Supports transmitting or receiving messages in full-frame or byte-wise manner.
Supports remote frames, standard frames, and extended frames.
Supports USB SH command line.
Supports the module slot method for dynamically modifying PDO mapping.

27.3. Example Program Description

27.3.1. Environment

27.3.1.1. SDK Version

V1.10.0

27.3.1.2. BOARD

HPM6E00EVK

27.3.2. Software Configuration

27.3.2.1. A. SSC Code Generation

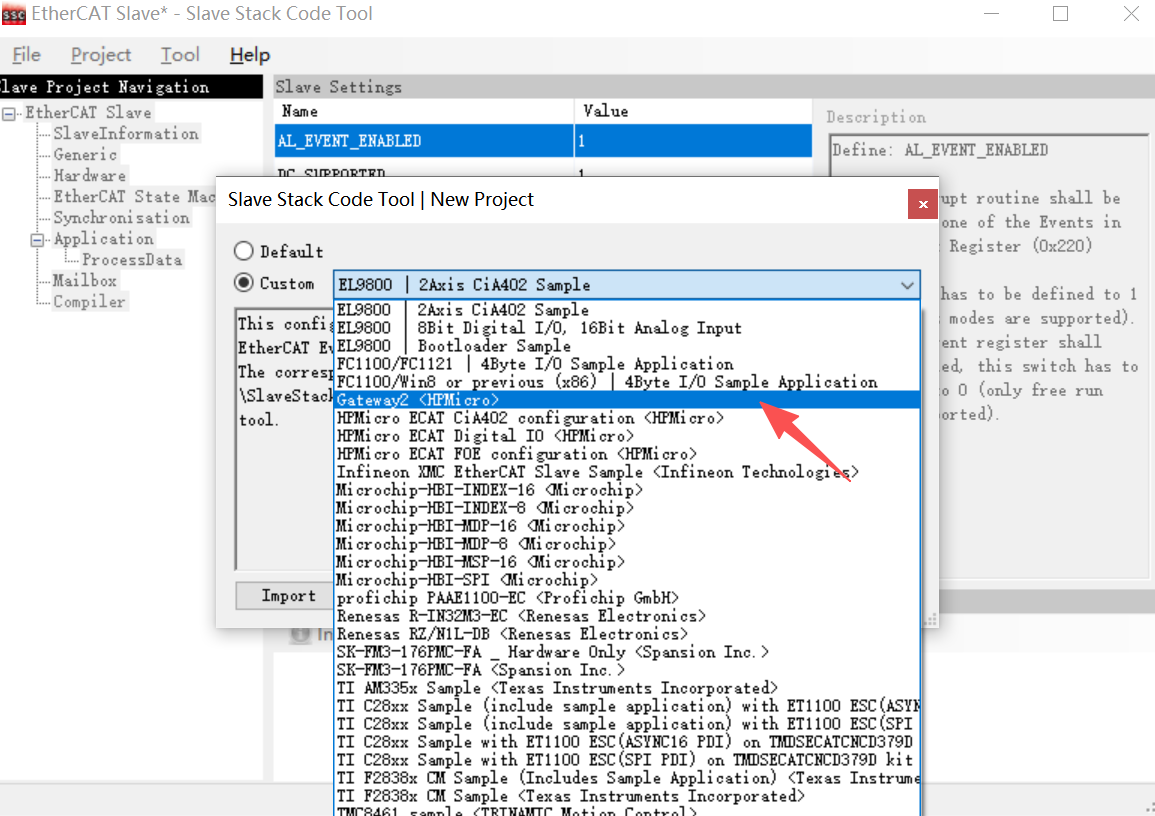

Create a new SSC project and select Gateway2

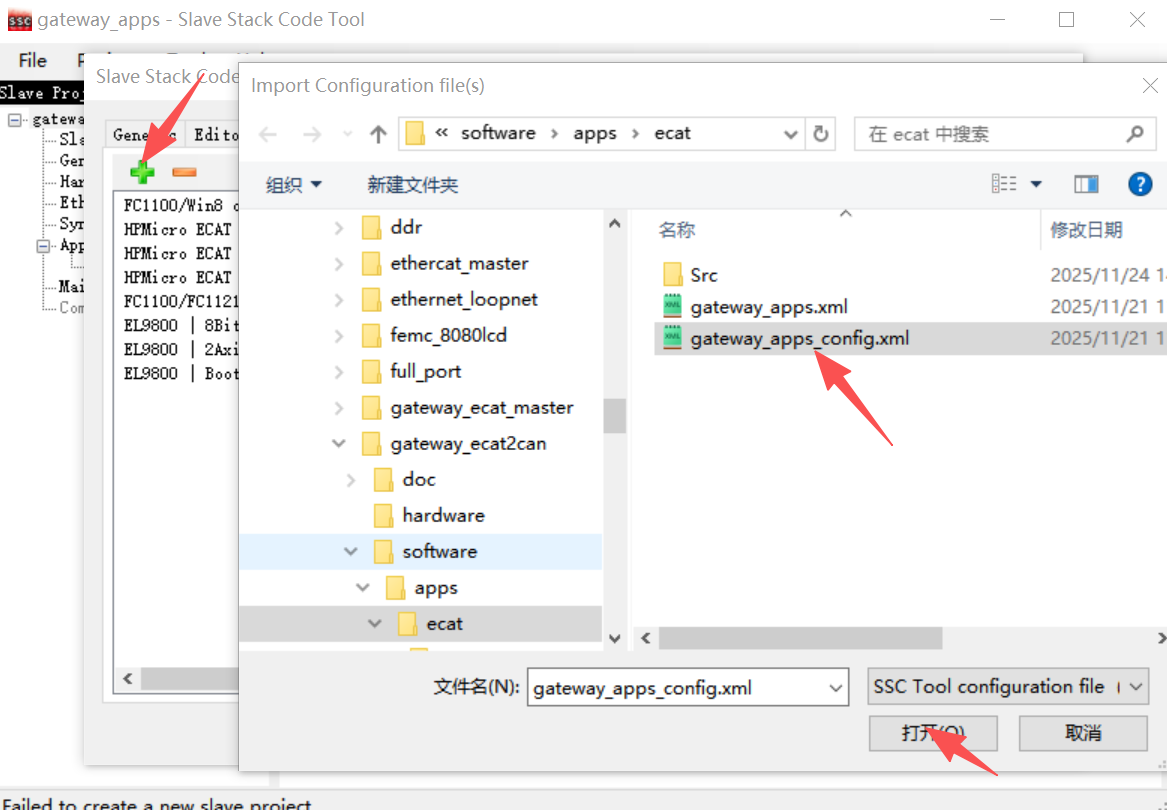

If the Gateway2 configuration is not available, click Tool->Options->Configurations in sequence and import software/apps/ecat/gateway_apps_config.xml.

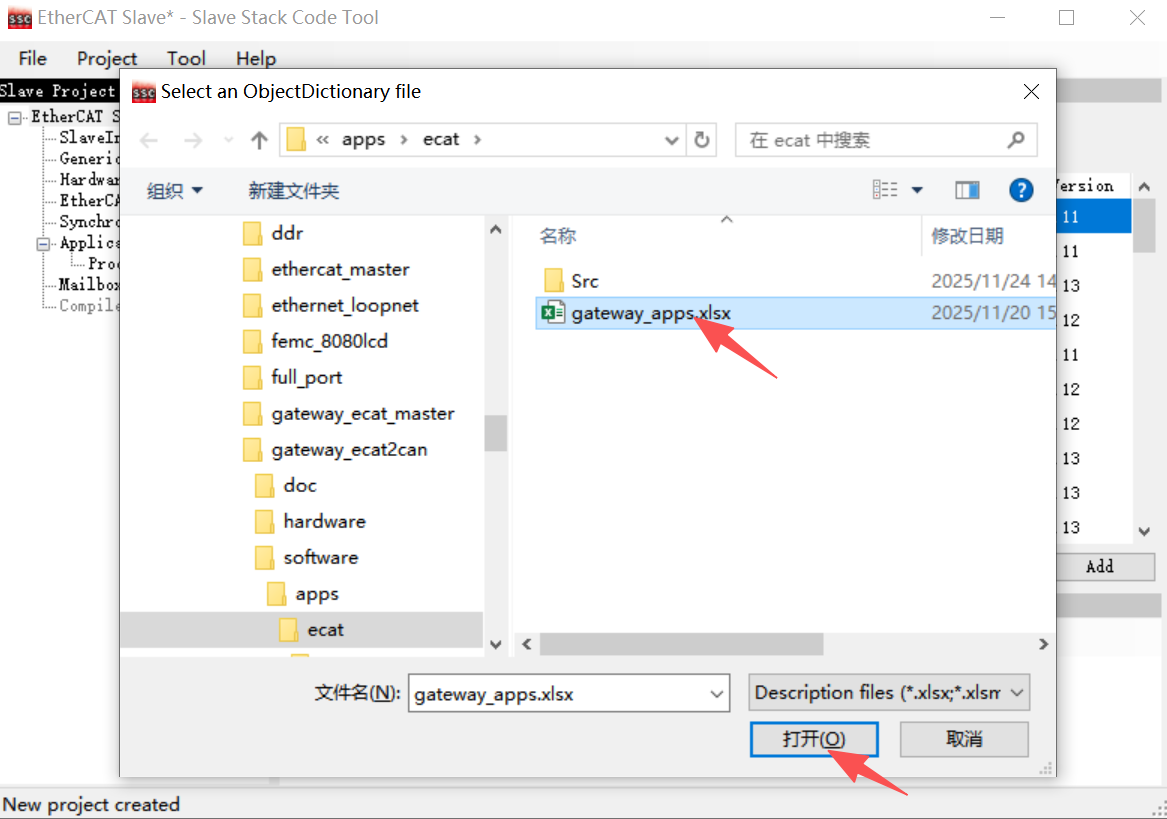

Click Tool->Application->Import in sequence and import software/apps/ecat/gateway_apps.xlsx

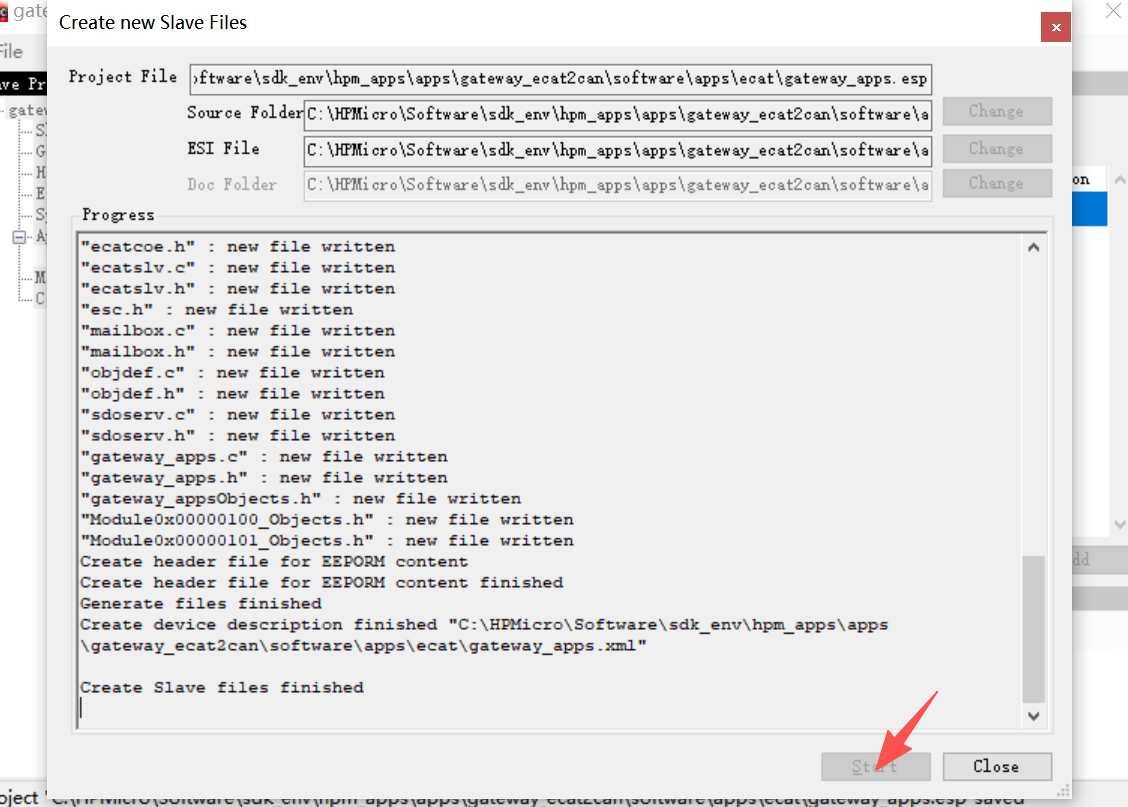

Generate SSC code: click Project->Create new Slave Files in sequence and generate the gateway_apps.xml file.Source Folder：hpm_apps\apps\gateway_ecat2can\software\apps\ecat\Src

Note: You can directly use gateway_apps.esp, which has been pre-configured with relevant parameters and can generate code directly.

27.3.2.2. B. Project Generation

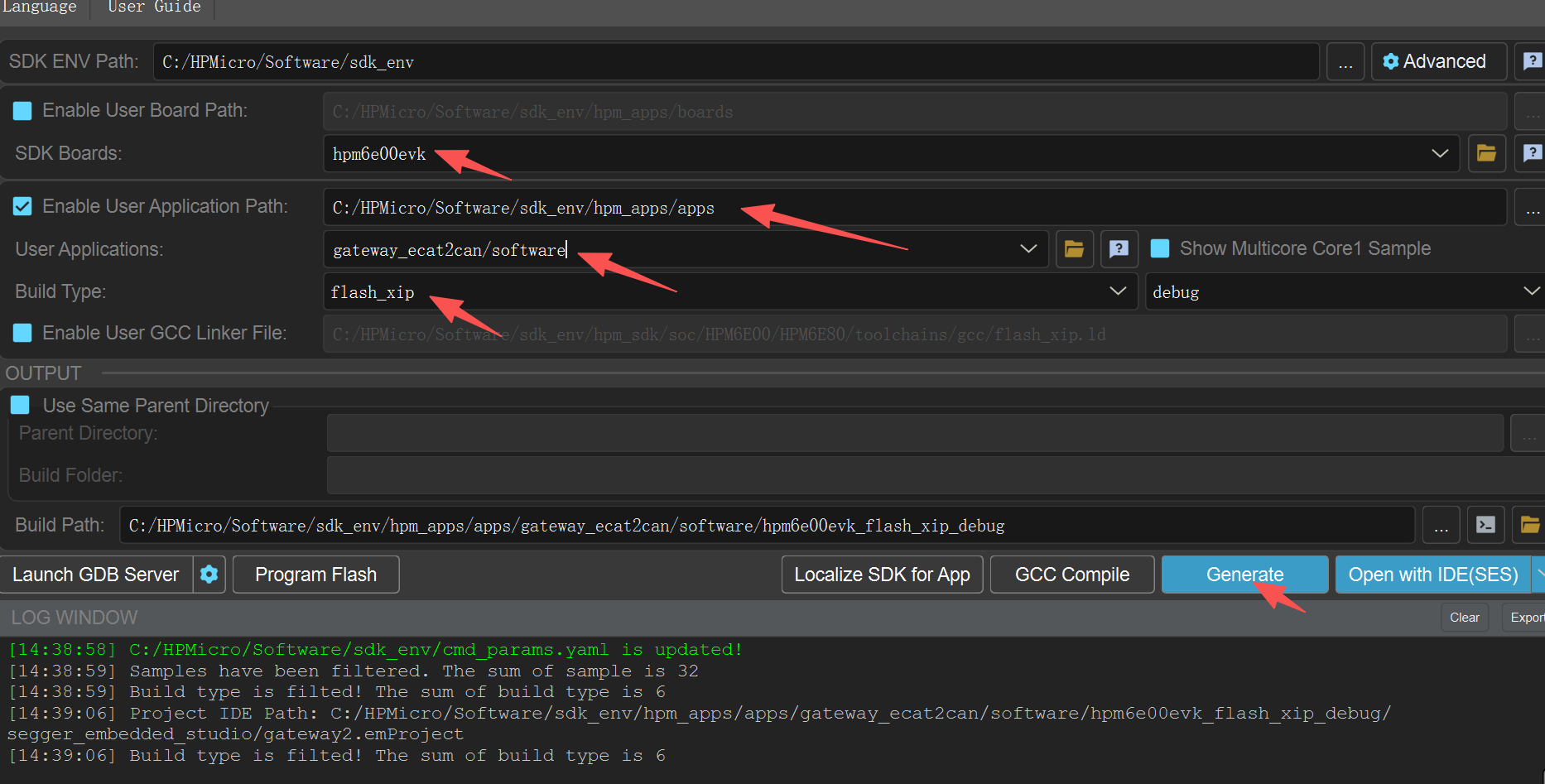

Generate a Segger project via HPM SDK Project Generator

27.3.3. Instructions for Using TwinCAT as the Master Station

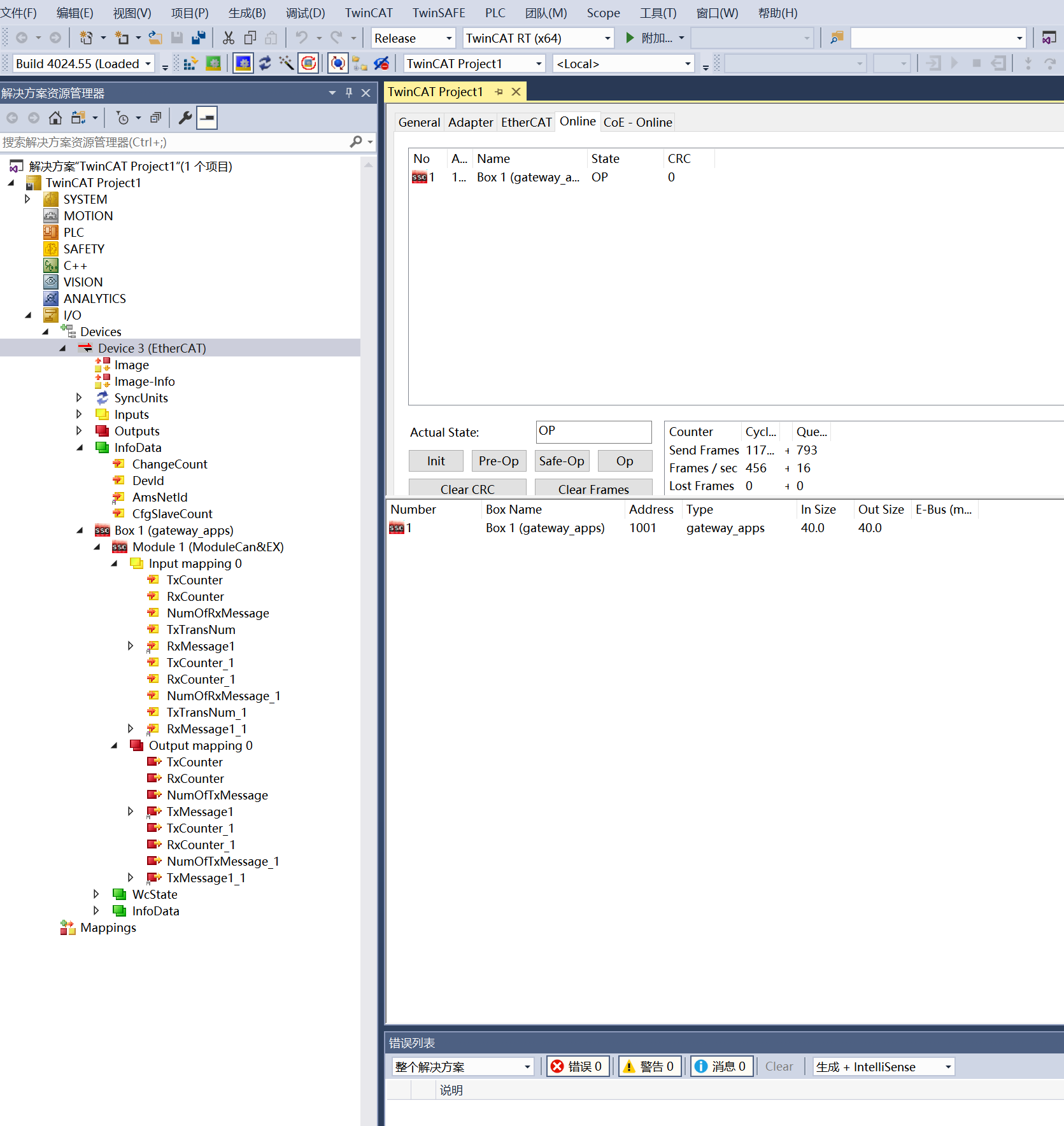

Set TwinCAT to OP state. According to the ETG 5001.5000 protocol, RxMessage_1 is used to receive standard CAN frames, TxMessage_1 is used to send standard CAN frames, RxMessage1_1 is used to receive extended CAN frames, and TxMessage1_1 is used to send extended CAN frames.

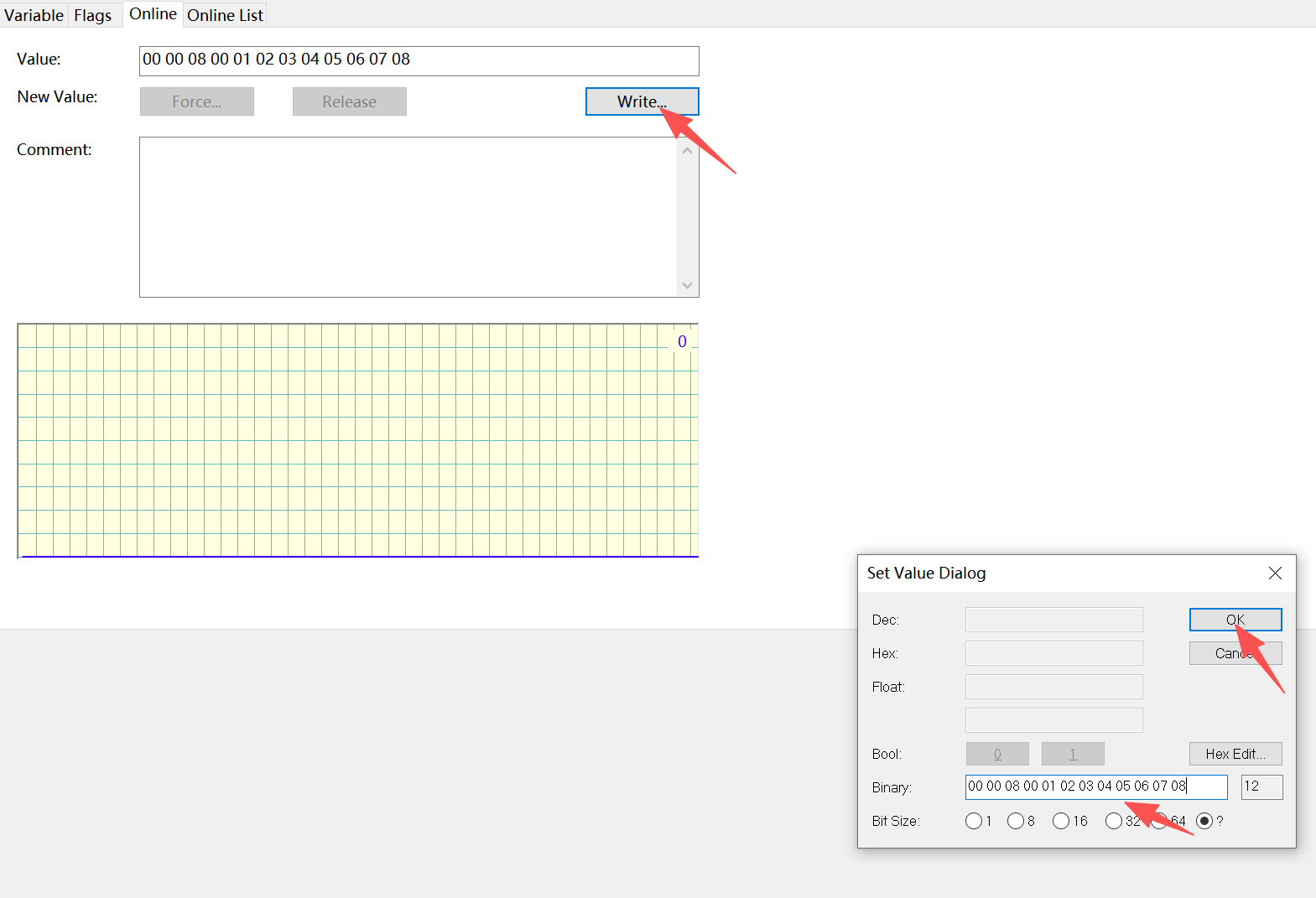

Send a standard CAN frame: write to TxMessage_1, e.g., send 1 2 3 4 5 6 7 8 standard CAN frame id=0

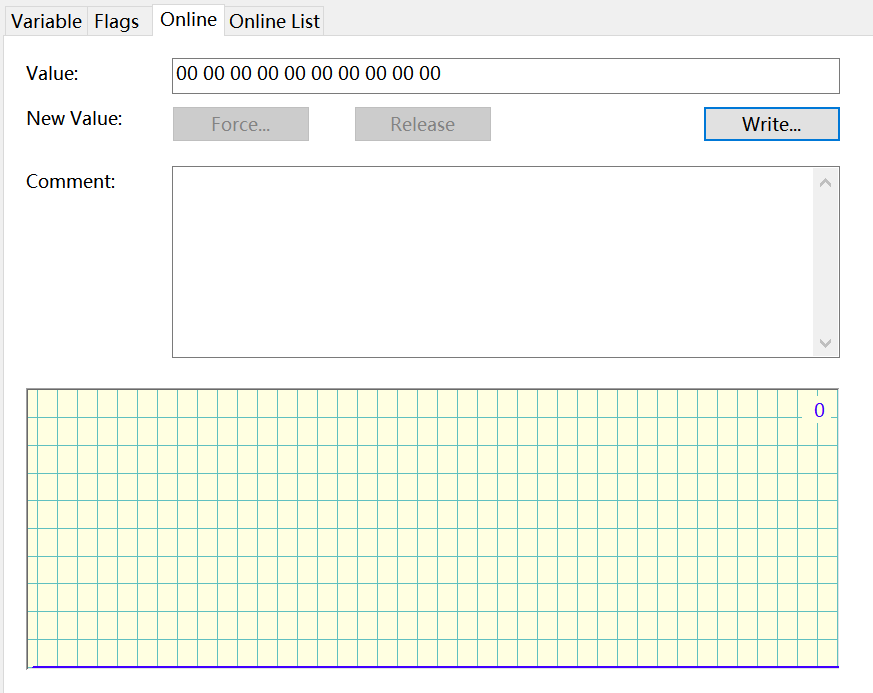

Receive a standard CAN frame: read RxMessage_1

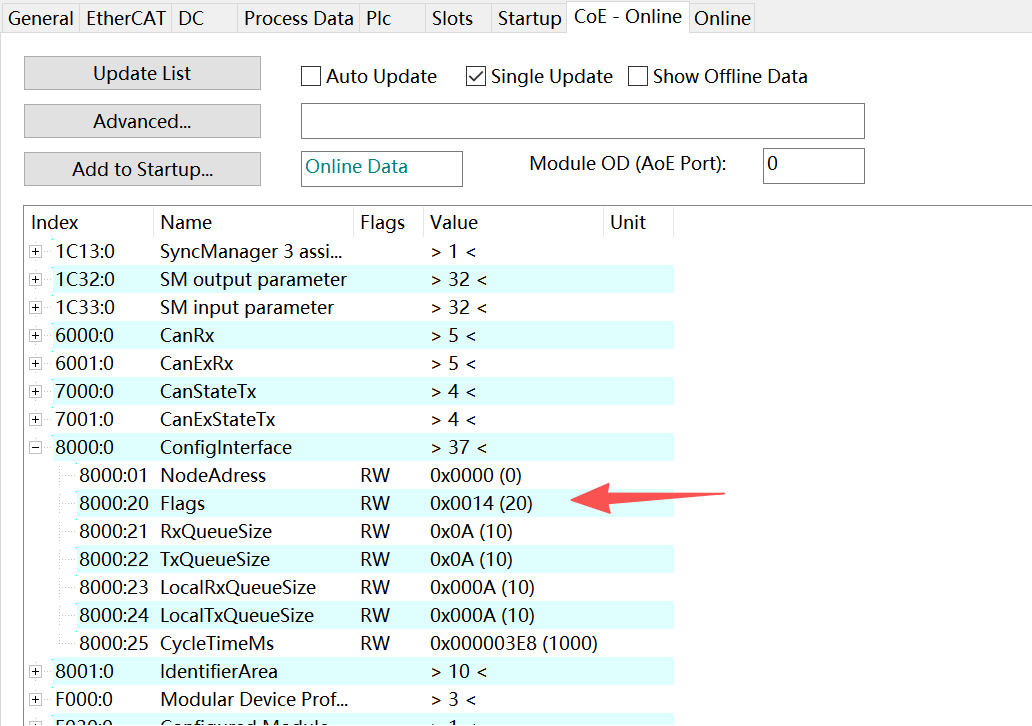

Transmission via Trigger Mode When writing to TxMessage_1, set bit4 of sub-index 32 at index 0x8000 to 1 to enable TriggerMode. Each time bit2 is set to 1, a frame is sent.

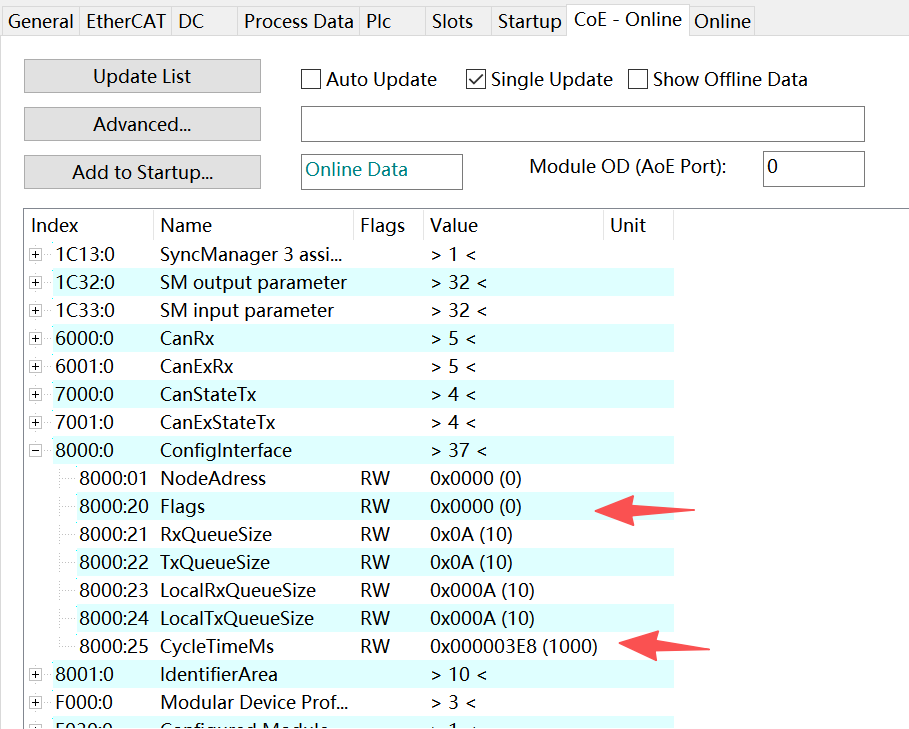

Transmission via Cycle Mode After writing to TxMessage_1, set bit4 of sub-index 32 at index 0x8000 to 0 to enable CycleMode. The cycle time is determined by the value of sub-index 37.

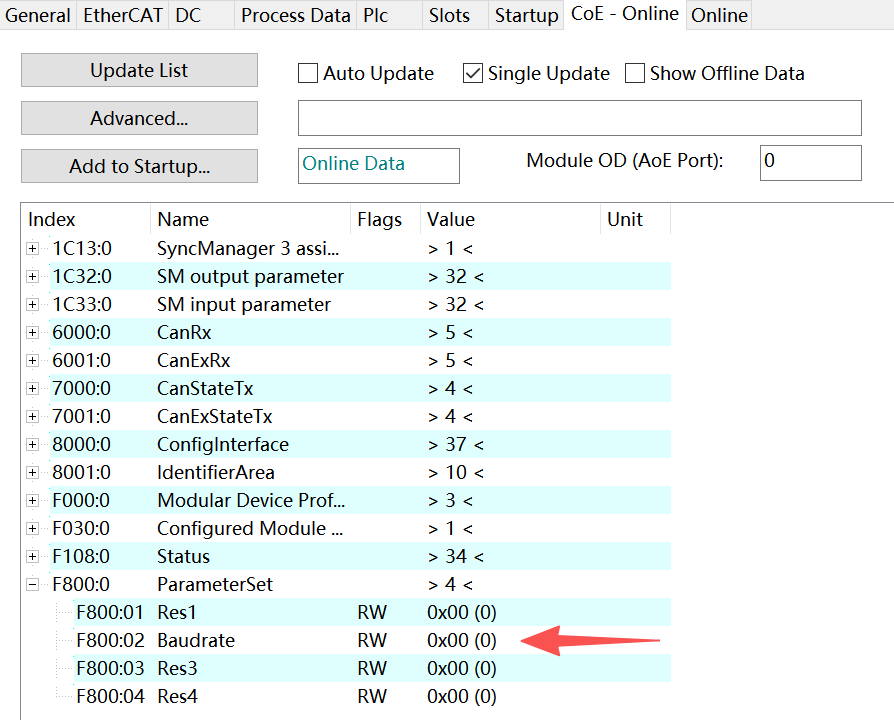

Configure CAN Parameters Write to sub-index 2 at index 0xF800 to set the CAN baud rate. Note: Switch the slave device to PREOP state before configuring COE. Correspondence between values and baud rates

            switch (ParameterSet0xF800.Baudrate)
            {
                case 0: //1M
                mq_msg.param = 1000000;
                break;
                case 1: //800k
                mq_msg.param = 800000;
                break;
                case 2: //500k
                mq_msg.param = 500000;
                break;
                case 3: //250k
                mq_msg.param = 250000;
                break;
                case 4: //125k
                mq_msg.param = 125000;
                break;
                case 5: //100k
                mq_msg.param = 100000;
                break;
                case 6: //50k
                mq_msg.param = 50000;
                break;
                case 7: //20k
                mq_msg.param = 20000;
                break;
                case 8: //10k
                mq_msg.param = 10000;
                break;
                case 255: //defined in bustiming register
                mq_msg.param = 255;
                break;
                default:
                mq_msg.param = 1000000;
                break;
            }
