7. HPM FEMC driver 8080 screen

7.1. Depend on SDK1.10.0

7.2. Introduction

this app introduces how to use FEMC controller to drive 8080 screen.The 8080 screen is mounted through the FEMC controller, like access RAM operation, through reading and writing the corresponding address can easily drive lit 8080 screen, and achieve high speed refresh rate.

In HPM6700/6400, 6300 series microcontroller with a multi-function external memory FEMC controller.

From the 8080 protocol timing diagram and SRAM timing diagram comparison, 8080 parallel port timing and SRAM timing is basically the same.Therefore, it can use the FEMC controller to drive 8080 screen.

7.3. Application note

AN

7.4. Sample code

7.4.1. FEMC Drive 8080 Screen Configuration:

#define SRAM_BASE_ADDR 0x48000000U
#define SRAM_SIZE 2
#define TFTReadData() (*(uint8_t *)0x48000001U)
#define Bank1_LCD_DATA ((uint32_t)0x48000001U)
#define Bank1_LCD_REG ((uint32_t)0x48000000U)
/* LCD write data and register */
#define LCD_WR_DATA(value) ((*(__IO uint8_t *)(Bank1_LCD_DATA)) = ((uint8_t)(value))) // Write data register
#define LCD_WR_REG(index) ((*(__IO uint8_t *)(Bank1_LCD_REG)) = ((uint8_t)index))     // Write Command Register

void femc_lcd8080_config(void)
{
    uint32_t femc_clk_in_hz = board_init_femc_clock();
    femc_config_t config = {0};
    femc_sram_config_t sram_config = {0};
    femc_default_config(HPM_FEMC, &config);
    config.dqs = FEMC_DQS_INTERNAL;
    femc_init(HPM_FEMC, &config);
    femc_get_typical_sram_config(HPM_FEMC, &sram_config);
    sram_config.oeh_in_ns = 100;
    sram_config.oel_in_ns = 70;
    sram_config.weh_in_ns = 35;
    sram_config.wel_in_ns = 35;
    sram_config.ah_in_ns = 50;
    sram_config.as_in_ns = 10;
    sram_config.ceh_in_ns = 10;
    sram_config.ces_in_ns = 15;
    sram_config.base_address = SRAM_BASE_ADDR;
    sram_config.size_in_byte = SRAM_SIZE;
    sram_config.port_size = FEMC_SRAM_PORT_SIZE_8_BITS;
    femc_config_sram(HPM_FEMC, femc_clk_in_hz, &sram_config);
}

7.4.2. 8080 screen read and write control:

void lcd8080_read_write_test(void)
{
    for(uint8_t i = 0; i < 0xFF; i++)
    {
        LCD_WR_DATA(i);
    }
    board_delay_ms(100);
    for(uint8_t i = 0; i < 0xFF; i++)
    {
        LCD_WR_REG(i);
    }
    board_delay_ms(100);
    for(uint8_t i = 0; i < 0xFF; i++)
    {
        printf("read:0x%02X\r\n", TFTReadData());
    }
    board_delay_ms(100);
}

7.4.3. PMP initialization modification:

void board_init_pmp(void)
{
    extern uint32_t __noncacheable_start__[];
    extern uint32_t __noncacheable_end__[];
    extern uint32_t __8080_start__[];
    extern uint32_t __8080_end__[];

    uint32_t start_addr = (uint32_t) __noncacheable_start__;
    uint32_t end_addr = (uint32_t) __noncacheable_end__;
    uint32_t length = end_addr - start_addr;
    uint32_t start_addr1 = (uint32_t) __8080_start__;
    uint32_t end_addr1 = (uint32_t) __8080_end__;
    uint32_t length1 = end_addr1 - start_addr1;
    if (length == 0) {
        return;
    }
    if (length1 == 0) {
        return;
    }
    /* Ensure the address and the length are power of 2 aligned */
    assert((length & (length - 1U)) == 0U);
    assert((start_addr & (length - 1U)) == 0U);
    assert((length1 & (length1 - 1U)) == 0U);
    assert((start_addr1 & (length1 - 1U)) == 0U);
    pmp_entry_t pmp_entry[4] = {0};
    pmp_entry[0].pmp_addr = PMP_NAPOT_ADDR(0x0000000, 0x80000000);
    pmp_entry[0].pmp_cfg.val = PMP_CFG(READ_EN, WRITE_EN, EXECUTE_EN, ADDR_MATCH_NAPOT, REG_UNLOCK);

    pmp_entry[1].pmp_addr = PMP_NAPOT_ADDR(0x80000000, 0x80000000);
    pmp_entry[1].pmp_cfg.val = PMP_CFG(READ_EN, WRITE_EN, EXECUTE_EN, ADDR_MATCH_NAPOT, REG_UNLOCK);

    pmp_entry[2].pmp_addr = PMP_NAPOT_ADDR(start_addr, length);
    pmp_entry[2].pmp_cfg.val = PMP_CFG(READ_EN, WRITE_EN, EXECUTE_EN, ADDR_MATCH_NAPOT, REG_UNLOCK);
    pmp_entry[2].pma_addr = PMA_NAPOT_ADDR(start_addr, length);
    pmp_entry[2].pma_cfg.val = PMA_CFG(ADDR_MATCH_NAPOT, MEM_TYPE_MEM_NON_CACHE_BUF, AMO_EN);

    pmp_entry[3].pmp_addr = PMP_NAPOT_ADDR(start_addr1, length1);
    pmp_entry[3].pmp_cfg.val = PMP_CFG(READ_EN, WRITE_EN, EXECUTE_EN, ADDR_MATCH_NAPOT, REG_UNLOCK);
    pmp_entry[3].pma_addr = PMA_NAPOT_ADDR(start_addr1, length1);
    pmp_entry[3].pma_cfg.val = PMA_CFG(ADDR_MATCH_NAPOT, MEM_TYPE_MEM_NON_CACHE_BUF, AMO_EN);
    pmp_config(&pmp_entry[0], ARRAY_SIZE(pmp_entry));
}

7.5. Code Path

• Code Path: apps/femc_8080lcd/software/

7.6. Code Configuration

none

7.7. Code Build

• Build for windows

7.8. Hardware

• This application uses HPM6364 chip installed on HPM6200EVK, external 8080 screen for testing.

7.9. Code Run

• Code Run

7.10. Lighting up the screen

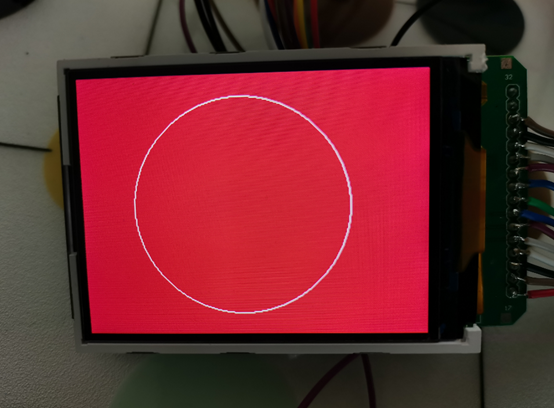

• HPM6300evk with 8080 screen physical figure (note: hpm6200evk posted HPM6300 series MCU).

7.11. API

About software API: API doc .
