hpm_ota

Introduction

  • IPA (In Application Programming) application programming.
  • OTA (Over-the-Air Technology) technology for remote upgrades. The above are collectively referred to as firmware upgrades/updates. Firmware upgrade refers to the process of erasing and updating the current code stored in the medium (such as Flash/eMMC). This firmware upgrade plan is an iterative upgrade of the [HPM secondary Boot firmware upgrade solution](hpm_ota_v1_instruction_en). The principles and processes of firmware upgrades are basically the same, and this document will not elaborate further. It supports the entire HPM MCU series and essentially covers all functional requirements for firmware upgrades.

Features

  • Supports the entire series of HPM MCUs.
  • Supports channel upgrades via network, serial port, USB, ECAT, etc.
  • Supports secondary BOOT download to upgrade APP firmware (non-background download upgrade).
  • Supports APP download to upgrade APP firmware (background download upgrade).
  • Supports full upgrades, differential upgrades, and compressed upgrades.
  • Supports firmware encryption, with exip decryption execution.
  • Firmware encryption supports both differential and compressed upgrades simultaneously.
  • Supports mixed upgrades of differential and full upgrades.
  • Utilizes XPI REMAP technology, allowing users to maintain a single firmware for all scenarios of the APP.
  • Secondary BOOT supports construction and operation in RAM, FLASH_XPI, and FLASH_SDRAM_XPI.
  • User APP supports construction and operation in RAM, FLASH_XPI, and FLASH_SDRAM_XPI.
  • Supports RAM and XPI mixed upgrades.
  • Supports arbitrary adjustment of FLASH partitions.
  • Supports upper computer tools to create and generate full, differential, and compressed signed upgrade packages.

Note:

  1. To avoid memory collision issues caused by unreasonable RAM allocation when both the secondary bootloader and user APP are executed as RAM types, the current solution restricts the simultaneous execution of both as RAM types. If the user can prevent the above situation, the restriction can be lifted.
  2. Differential upgrades require version management; the currently running firmware and the firmware being upgraded must have differences for the upgrade to proceed normally.
  3. For differential upgrades, when creating the differential package, it is essential to ensure that the signature algorithm type matches that of the currently running firmware; otherwise, differential upgrades will not be supported.
  4. When encrypting the user APP, to ensure the security of the encryption key, the area of the encryption key must be encrypted. For example, using the official KEK BLOB encryption.

Introduction

General Flash Partition

This solution provides a general Flash partition table, with default configurations for 4M and 1M general Flash partition tables. Users can adjust them according to their application scenarios. ota2_flash_map Where:

  • BOOTHEADER: HPM boot image header information, which includes: EXIP BLOB/XPI FLASH configuration items/FW BLOB/firmware container header information. This part is fixed at 12K and cannot be modified.
  • BOOTUSER: Secondary BOOT firmware area, default size is 256K, position is fixed, but size can be adjusted freely.
  • USERKEY: User APP encryption key area, default size is 4K, position and size can be adjusted freely.
  • APP1IMG: User APP1 firmware area, default size is 1M, position and size can be adjusted freely.
  • APP2IMG/LZMA: User APP2 firmware area or compressed firmware area, default size is 1M, position and size can be adjusted freely. If using compressed firmware, the area size can be reduced according to the minimum compression ratio of LZMA.
  • DIFFFILE: Differential firmware area, default size is 512K, position and size can be adjusted freely.
  • USER: User-defined area, allocated by the user.

Note: Users can freely adjust the partition sizes, but they cannot delete partitions. If a partition is not needed, its size can be adjusted to 0. For example: If the user does not use differential upgrades, they can set FLASH_DIFF_APP_SIZE to 0.

RAM or FLASH XIP Operation

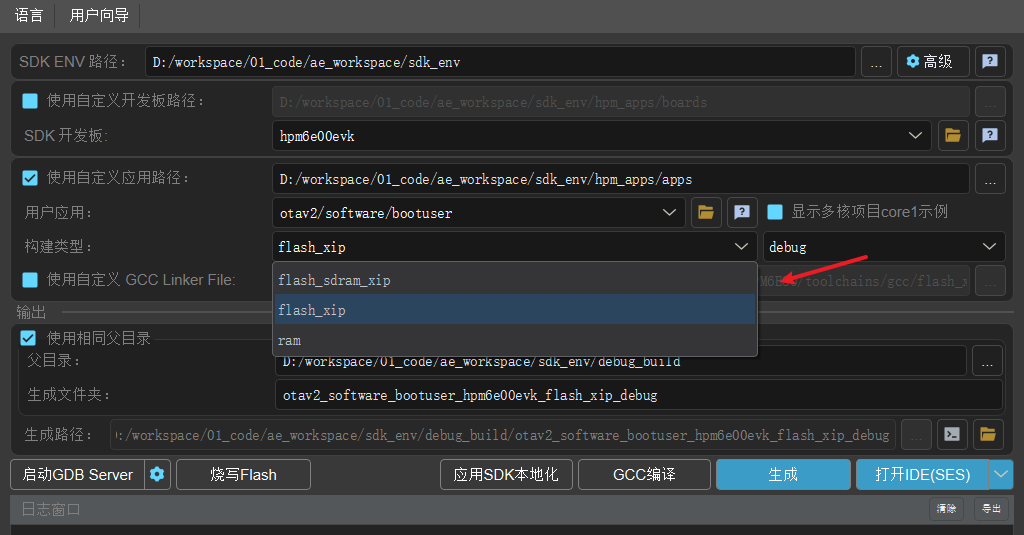

This solution supports secondary BOOT and user APP running based on RAM, FLASH_XIP, and FLASH_SDRAM_XIP. As shown in the figure below, you can choose during the build: ota2_bootuser_build_1 ota2_userapp_build_1 Note:

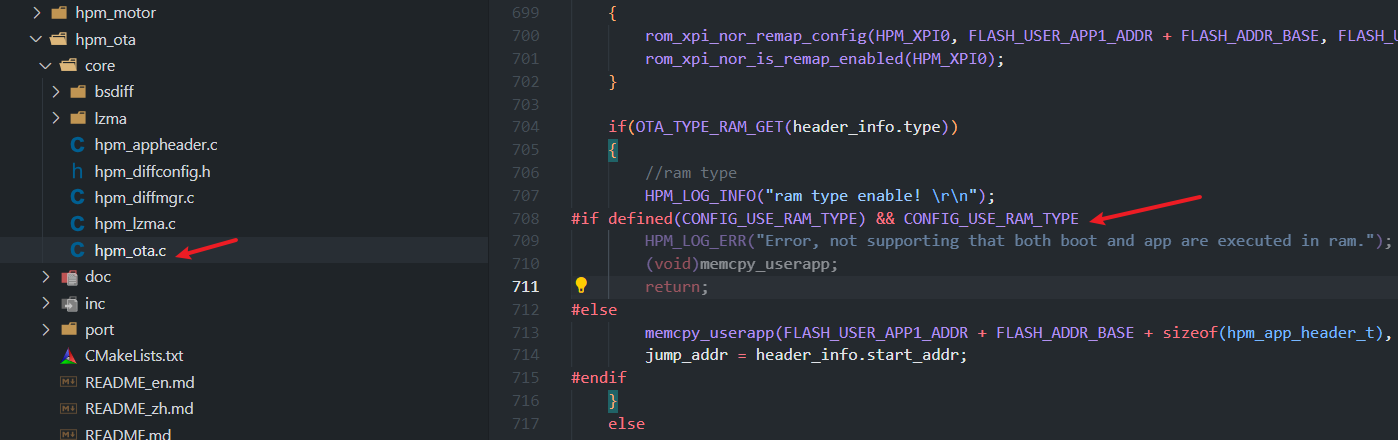

  1. When building based on RAM, the official RAM linker file is used by default. To avoid memory overlap between BOOT and APP (using the same linker file), the current solution has restricted both the secondary BOOT and user APP from being built as RAM types simultaneously. This restriction can be lifted if you can ensure that memory overlap is avoided. ota2_ram_1
  2. When creating the OTA signed firmware, it is essential to strictly select the corresponding build type: RAM/FLASH_XIP. Among them, FLASH_XIP and FLASH_SDRAM_XIP are both classified as FLASH_XIP types. ota2_tool_1

Firmware Encryption

This solution supports user APP firmware encryption and online encryption execution with HPM MCU exip. The encryption key for the user APP firmware is managed by the user themselves. It can be stored at any location in Flash or in the secondary BOOTUSER.

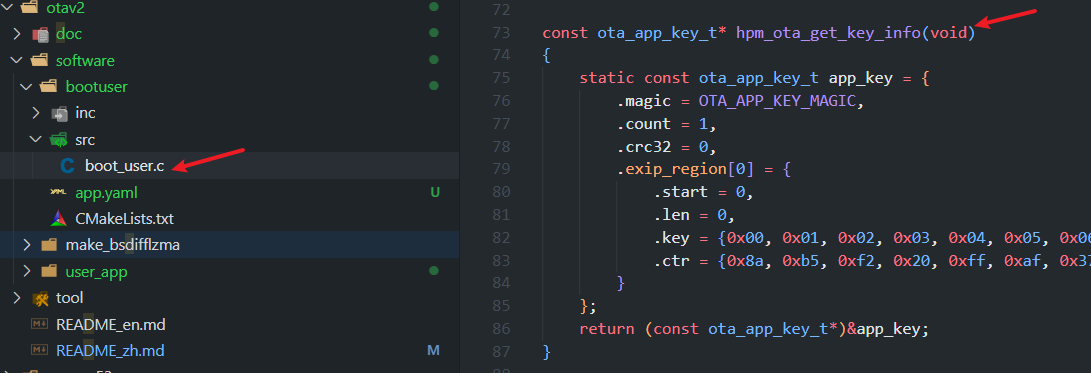

By default, this solution places the key in the BOOTUSER, as shown below: ota2_key_1

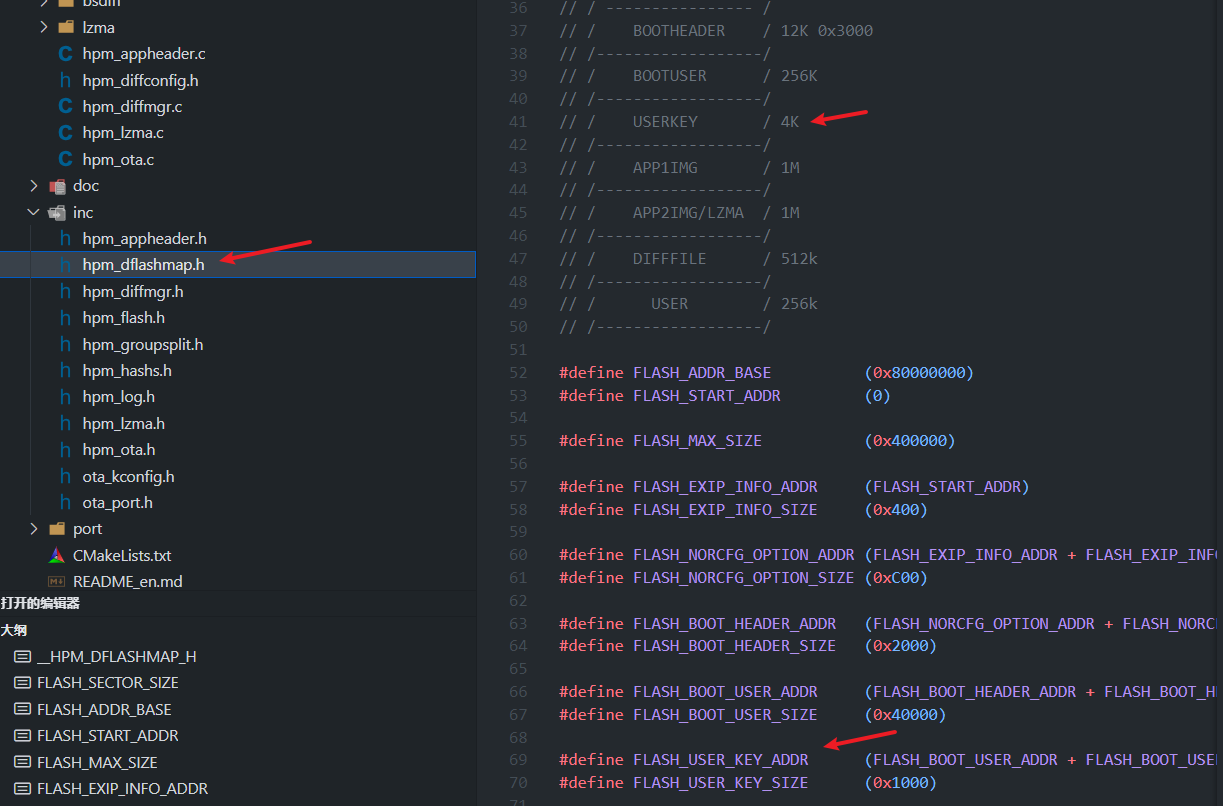

If you want to place it in other locations in Flash, please adjust the flash_map file to change the KEY location accordingly. As shown below: ota2_key_2

Note: Due to the security of the encryption key, the area where the key is stored must be encrypted. For example, you can use the original HPM exip KEK blob scheme for encryption (refer to the MFT tool for encryption methods) for the BOOTUSER or KEY area where the key is stored. As shown below:

Since EXIP supports a maximum of 4 segments for decryption execution, the current solution uses 3 segments for the user APP by default, so the 3rd segment cannot be enabled here. ota2_exip_1

The encryption and creation of the user APP firmware OTA package is completed using the pack_ota.exe tool. Follow the prompts from the pack_ota.exe tool strictly to create the OTA package.

Note: The encryption key is by default located in the exip_key.json file under the tool's path.

Double-click to run pack_ota.exe and follow the prompts to complete the encryption of the user_app and the creation of the OTA package.

Note: The encryption of the user APP firmware does not differentiate between firmware running types and generation types. For example, both FLASH_XIP and RAM-based firmware support APP firmware encryption, and APP encrypted firmware can generate normal firmware, differential firmware, and compressed firmware.

Full Upgrade

This solution supports full upgrades of the user APP and allows for APP ping/pang upgrade operations. Definition: Download a complete upgrade package that overwrites all files, regardless of whether there are changes in the old version. Advantages:

  • High reliability: Completely replaces the old version, avoiding residual files or dependency issues.
  • Simple operation: No need to calculate differences or merge files, making the upgrade process stable.
  • Broad compatibility: Suitable for first-time installations or major version updates. Disadvantages:
  • High resource consumption: Requires downloading the complete package, which takes a long time and uses a lot of data.
  • Storage pressure: The device must reserve enough space to store the complete package. Applicable scenarios:
  • First-time installation or major version updates;

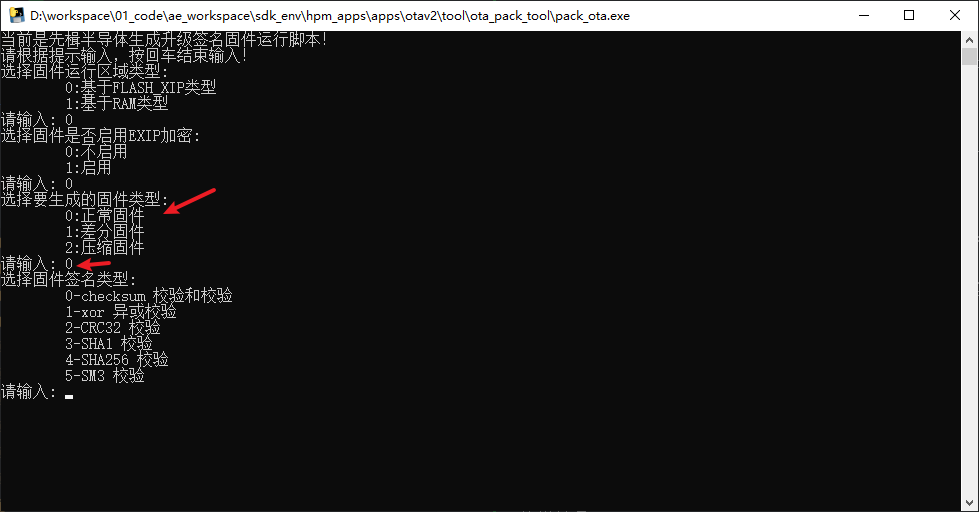

  • Environments with good communication conditions and sufficient device storage. Full upgrade process: Note: For full upgrades when creating OTA firmware using pack_ota.exe, simply select normal firmware as shown below: ota2_tool_2

Differential Upgrade (Incremental Upgrade)

This solution supports differential upgrades for user apps. Considering failures caused by unexpected power outages, it is designed to use a three-zone upgrade operation: PING/PANG/diff. Additionally, this solution further compresses the differential firmware, significantly reducing the size of the upgrade package. This solution uses the bsdiff differential algorithm: https://github.com/mendsley/bsdiff Definition: Only download the differences between the old and new versions, merging them into the old version to generate the new version. Advantages:

  • Efficient and data-saving: Only transmits the differential data, saving bandwidth and time. Disadvantages:
  • Dependency on the old version: The differential package must be generated based on a specific old version, and version fragmentation may lead to compatibility issues.
  • High complexity: Requires maintenance of the differential algorithm, and the merging process may encounter errors (e.g., power outages leading to upgrade failures).
  • Computational overhead: The device needs to handle the differential merging, which has certain hardware performance requirements. Applicable scenarios:
  • Frequent minor version iterations.
  • Scenarios with poor network conditions or sensitivity to data usage.

Note:

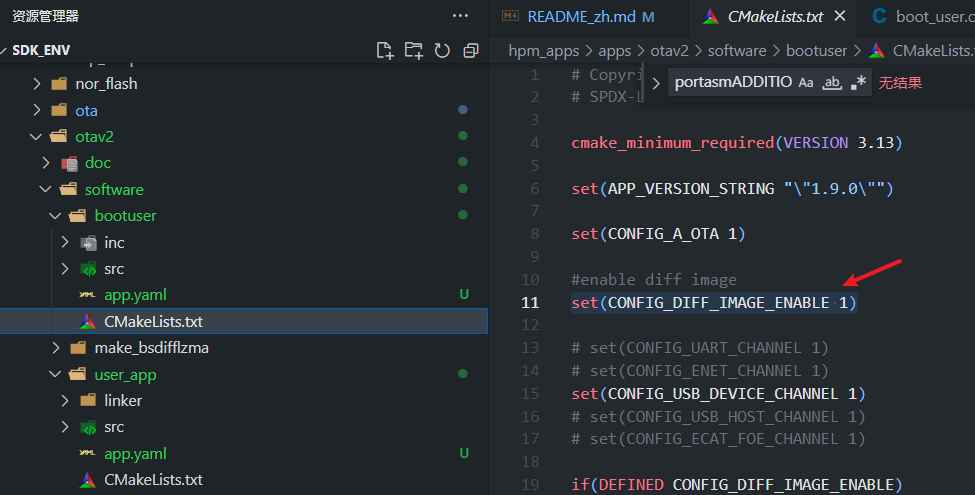

  1. To enable differential upgrades, you need to enable the differential macro definition in cmakelist.txt (both bootuser and user_app must be enabled): set(CONFIG_DIFF_IMAGE_ENABLE 1) As shown below: ota2_diff_1
  2. When creating OTA firmware using pack_ota.exe, simply select differential firmware.
  3. When creating OTA firmware using pack_ota.exe, the signature type must be consistent each time; otherwise, differential upgrades are not supported. For example, if you select 4 (SHA256) the first time, you must also select 4 when creating the differential OTA package afterward.

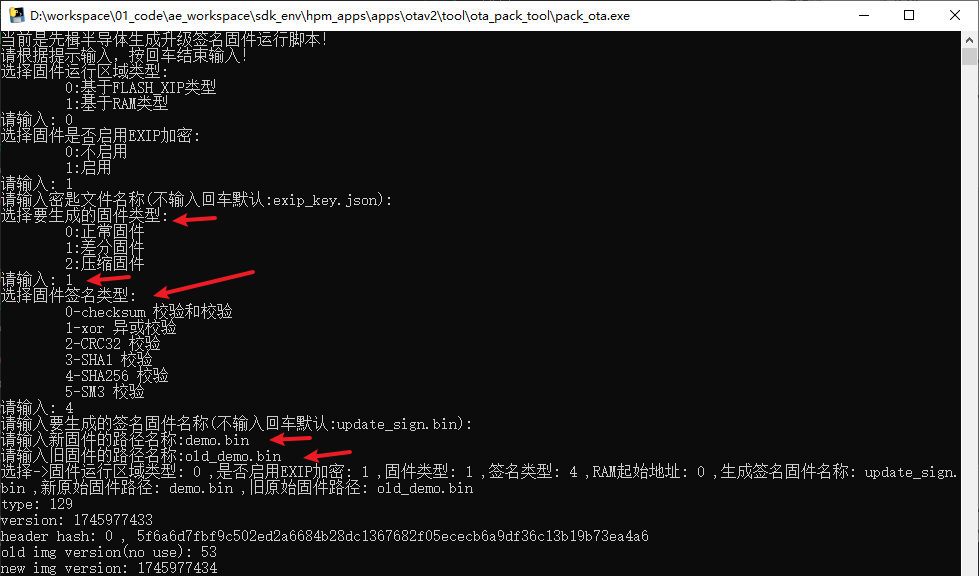

  4. When creating OTA firmware using pack_ota.exe, the old firmware selected must be the existing firmware currently stored on the MCU device; otherwise, differential upgrades are not supported. As shown below: ota2_diff_2

Compressed Upgrade

This solution supports user APP compressed upgrades, including both full and differential compressed upgrades. The solution uses the LZMA compression algorithm: https://www.7-zip.org/sdk.html Definition: The upgrade package (full or differential) is compressed and transmitted, and the receiving end decompresses it before executing the upgrade. Advantages:

  • Reduced transmission volume: The size is significantly reduced after compression (e.g., LZMA compression).
  • High flexibility: Can be used with either full or differential upgrades, making it highly versatile. Disadvantages:
  • Additional processing steps: Requires decompression, which increases upgrade time and computational load.
  • Compatibility dependency: Devices must support the corresponding decompression algorithm. Applicable scenarios:
  • Environments with limited bandwidth (e.g., remote upgrades for IoT devices).
  • Situations where transmission efficiency needs to be optimized but the device has decompression capabilities. Note:
  1. Compressed upgrades must enable the differential macro definition in cmakelist.txt (both bootuser and user_app need to be enabled): set(CONFIG_DIFF_IMAGE_ENABLE 1) As shown below: ota2_diff_1

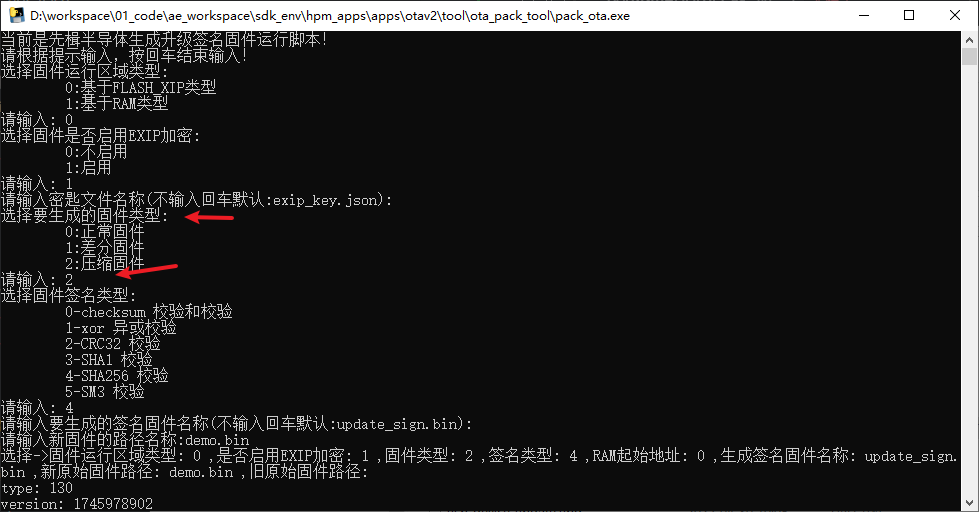

  2. When creating OTA firmware using pack_ota.exe, simply select Compress Firmware. As shown below: ota2_lzma_1

Licensing

HPM APP is permissively licensed using the BSD 3-clause license
